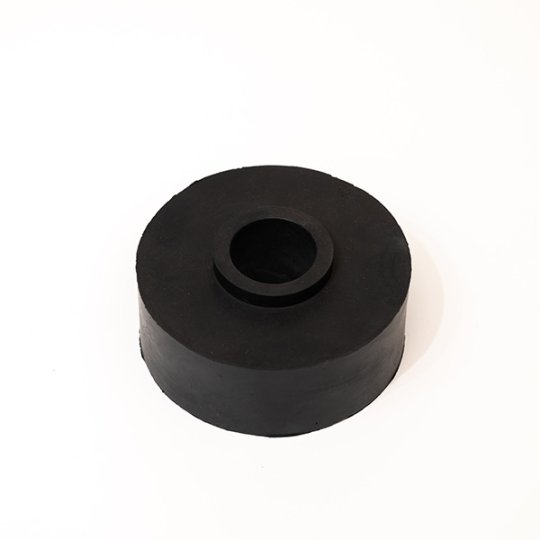

Product Name：EPDM 40A-50A Recycled Rubber Grommet
Material：Recycled EPDM rubber (≥ 85% recycled content, customizable)
Hardness：40 ± 5 Shore A; 50 ± 5 Shore A
Color：Black (customizable: gray, white)
Structure：Solid cylindrical grommet with central through-hole (one-piece molded)
Technical Specifications
Parameter | Standard Value | Tolerance | Test Method |
Outer Diameter (OD) | [79.7 mm] | ±0.3 mm | ISO 2780 |
Inner Diameter (ID) | [25 mm] | ±0.2 mm | ISO 2780 |
Thickness/Height (H) | [32 mm] | ±0.2 mm | ISO 2780 |
Operating Temperature Range | -40°C to +100°C | - | ISO 188 |
Compression Set | ≤ 25% (72h, 70°C) | - | ISO 815 |
Tensile Strength | ≥ 6.0 MPa | - | ISO 37 |
Elongation at Break | ≥ 200% | - | ISO 37 |
Recycled Content | ≥ 85% (EPDM fraction) | ±3% | ASTM D6866 |
Ozone Resistance | No cracking (50 pphm, 40°C, 96h) | - | ISO 1431 |
UV Resistance | No degradation (UV-A, 1000h) | - | ISO 4892 |
Performance Characteristics

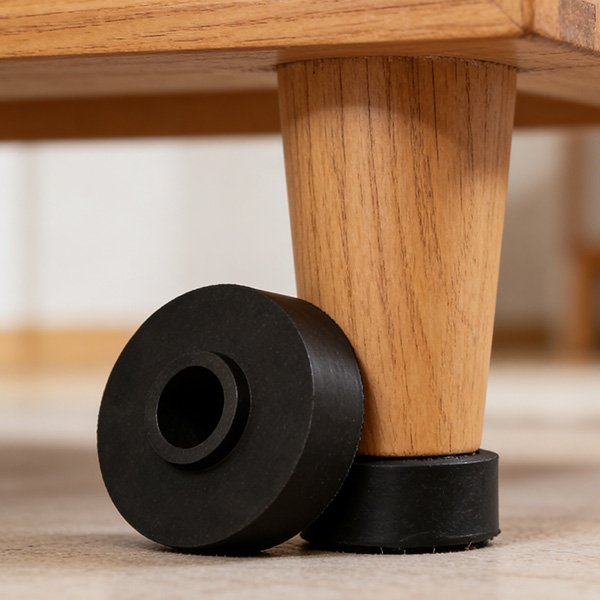

Soft Cushioning & Sealing: 40A hardness ensures optimal compression for gap filling and vibration absorption in low-load applications.
Sustainable Reliability: High recycled content without sacrificing EPDM’s core resistance to ozone, UV, and temperature extremes.
Deformation Resistance: Low compression set maintains long-term sealing performance under continuous static load.
Easy Assembly: Flexible material enables tool-free installation into panel holes or around shafts.
Safety Compliance: Non-toxic, low-VOC formulation suitable for indoor and automotive interior applications.
Applications
Automotive: Wiring harness protection, pipe sealing, and fastener damping in vehicle interiors/exteriors.
HVAC & Appliances: Fan motor vibration isolation, refrigerant line penetration sealing, and appliance component cushioning.
Industrial: Cable/pipe protection for panel penetrations in light machinery, agricultural equipment, and power tools.
Construction: Solar panel mounting damping, pipe penetration sealing, and building ventilation noise reduction.
Electronics: Battery pack cushioning, control panel insulation, and wiring harness protection.
 |  |  |
Packaging & Storage
Packaging: Carton Packing
Storage: Store in a cool, dry, well-ventilated area (5°C–25°C, relative humidity ≤ 60%), away from direct sunlight, oil, solvents, and sharp objects.
Shelf Life: 18 months from production date under recommended storage conditions.
