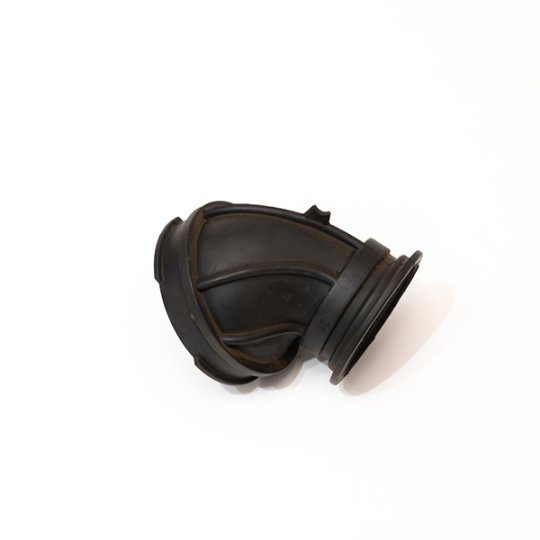

Product Name: EPDM Pipe Connector Elbow Tubing
Material: High-grade EPDM rubber with internal rib reinforcement
Color: Black (customizable)
Structure: Molded elbow (45°/90°) with flanged ends for secure connection
Technical Specifications
Parameter | Standard Value | Tolerance |
Angle | 45° / 90° (or as required) | ±1° |
Inner Diameter | [e.g., 50 mm] | ±0.5 mm |
Outer Diameter | [e.g., 60 mm] | ±0.5 mm |
Flange Diameter | [e.g., 70 mm] | ±0.5 mm |
Length (center-to-center) | [e.g., 100 mm] | ±1 mm |
Operating Temperature | -40°C to +120°C | - |
Hardness (Shore A) | 65 ± 5 Shore A | - |
Tensile Strength | ≥ 12 MPa | - |
Elongation at Break | ≥ 250% | - |
Aging Resistance | No cracking after 1000 hours at 100°C | - |
Oil Resistance | Volume change ≤ 15% after immersion in No. 20 oil at 100°C for 72h | - |
Maximum Working Pressure | 0.3 MPa (3 bar) | - |
Performance Characteristics
Vibration Damping: Effectively absorbs mechanical vibrations, reducing noise and preventing pipe fatigue.
Leak-Proof Sealing: Flanged ends ensure a secure, airtight connection in air and fluid systems.
Flexible Routing: Elbow design allows directional changes in confined spaces, accommodating minor misalignments.
Durability: Resists environmental aging, chemical attack, and mechanical wear.
Applications

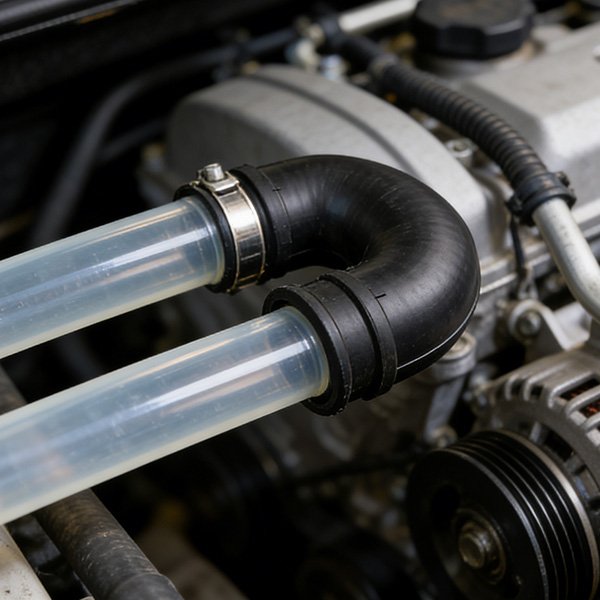

Automotive: Engine air intake systems, coolant lines, HVAC ducting, and emission control systems.
Industrial: Ventilation, dust collection, and light-duty fluid transfer in machinery.
HVAC: Air handling units and fan systems to direct airflow and absorb vibrations.
 |  |  |
Packaging & Storage
Packaging: [e.g., 50 pcs per carton, 60x40x30 cm, 8 kg net weight]
Storage: Store in a cool, dry place, away from direct sunlight, oil, and chemicals.
Shelf Life: 24 months under proper storage conditions.
