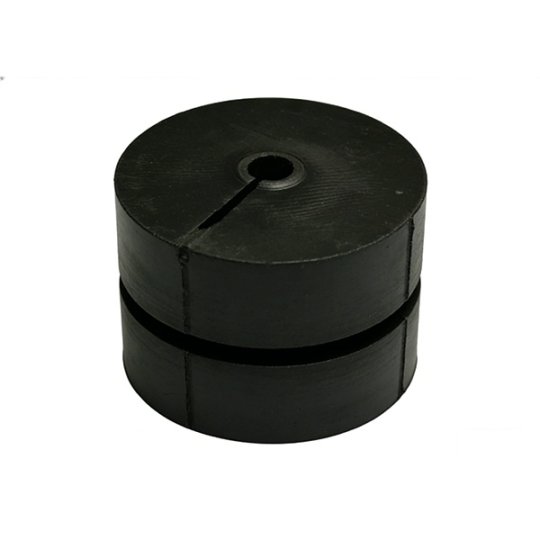

Product Name: Air Conditioner Copper Pipe Fixed Rubber Damping Block / Anti-Vibration Rubber Pad
Material: High-density EPDM / Neoprene rubber with embedded metal weight (lead/steel)
Color: Black (customizable)
Structure: Split-type (two halves) for easy installation
Technical Specifications
Parameter | Standard Value | Tolerance |
Applicable Pipe Diameter | 6.35 mm / 9.52 mm / 12.7 mm / 15.88 mm (or as required) | ±0.2 mm |
Product Weight | 40 g / 80 g / 120 g / 258 g (or as required) | ±2% |
Outer Diameter | [e.g., 50 mm] | ±1 mm |
Length | [e.g., 80 mm] | ±1 mm |
Operating Temperature | -40°C to +120°C | - |
Hardness (Shore A) | 60 ± 5 Shore A | - |
Tensile Strength | ≥ 10 MPa | - |
Elongation at Break | ≥ 300% | - |
Aging Resistance | No cracking after 1000 hours at 100°C | - |
Performance Characteristics
Vibration Damping: Effectively absorbs compressor vibration, reduces pipe resonance, and lowers noise by 20–30 dB.
Shock Absorption: Prevents copper pipe fatigue, cracking, and joint failure under repeated mechanical stress.
Weather Resistance: Excellent resistance to ozone, UV radiation, moisture, and temperature fluctuations.
Electrical Insulation: Provides reliable electrical insulation for enhanced system safety.
Easy Installation: Split design allows quick clamping without pipe disassembly.
Applications

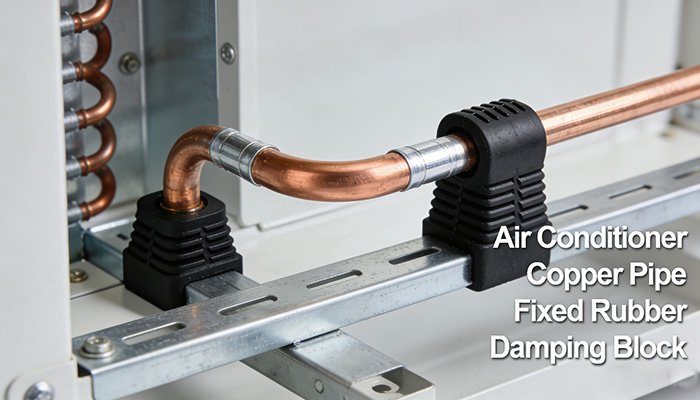

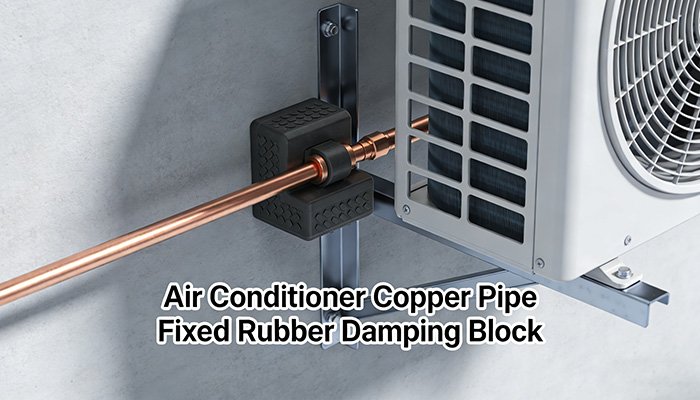

Primary: Suction and discharge copper pipes of air conditioner / heat pump compressors (near compressor outlet).
Secondary: Refrigerators, dehumidifiers, air-source water heaters, and other refrigeration equipment.
Scenarios: Residential, commercial, and industrial HVAC/refrigeration systems.
 |  |
Packaging & Storage
Packaging: [e.g., 100 pcs per carton, 50x30x25 cm, 10 kg net weight]
Storage: Store in a cool, dry place, away from direct sunlight, oil, and chemicals.
Shelf Life: 24 months under proper storage conditions.
