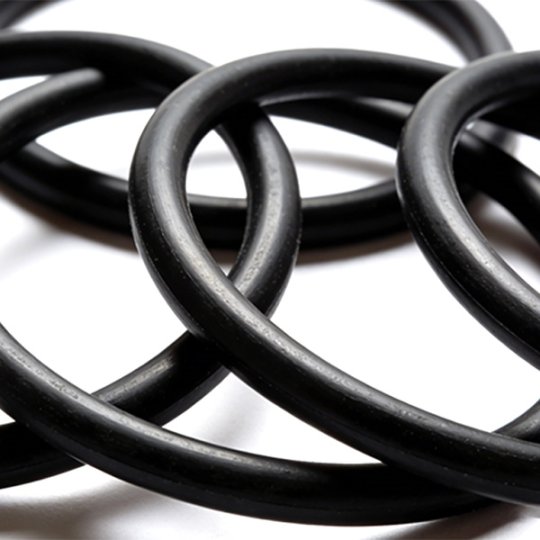

Our HNBR (Hydrogenated Nitrile Butadiene Rubber) O-Ring is a high-performance sealing component engineered for exceptional resistance to oils, fuels, and high temperatures. It delivers reliable static and dynamic sealing performance in demanding automotive, industrial, and hydraulic applications, outperforming standard NBR in heat resistance and durability.
Basic Information
Item | Specification |
Material | HNBR (Hydrogenated Nitrile Butadiene Rubber) |
Shape | O-Ring (Circular Cross-Section) |
Temperature Range | -40°C ~ 180°C (Short-Term Peak: 200°C) |
Hardness (Shore A) | 60±5 ~ 90±5 (Custom hardness available) |
Color | Black (Standard), Blue, Green (Custom colors available) |
Size Range | Metric & Imperial: ID 1mm ~ 500mm, Cross-Section (CS) 1.0mm ~ 10mm |
Compression Set | ≤15% (70h / 150°C, Standard Grade) |
Standards | ISO 3601, AS568, JIS B 2401, ASTM D2000 |
Compliance | RoHS, REACH |
Core Functions | Static/Dynamic Sealing, Oil/Fuel Resistance, High-Temperature Performance |
Performance
Outstanding Oil and Fuel Resistance: Excellent compatibility with mineral oils, synthetic lubricants, diesel, gasoline, and biofuels, maintaining sealing integrity in fluid handling systems.
Wide Temperature Resistance: Operates reliably from -40°C to 180°C (short-term peak up to 200°C), suitable for high-temperature engine and industrial environments.
Excellent Mechanical Properties: High tensile strength, tear resistance, and abrasion resistance, ensuring long service life even under dynamic operating conditions.
Low Compression Set: Minimal permanent deformation after prolonged compression, providing consistent sealing pressure over extended periods.
Resistance to Aging: Good resistance to ozone, weathering, and oxidation, preventing premature degradation in outdoor and harsh operating environments.
Application
Automotive Industry: Seals for engine fuel systems, oil pans, transmission systems, and turbocharger hoses, withstanding exposure to fuels and high temperatures.
Hydraulic and Pneumatic Systems: Dynamic seals for hydraulic cylinders, valves, and pumps, providing leak-proof performance under high pressure.
Oil and Gas Industry: Downhole sealing components, wellhead equipment seals, and pipeline gaskets, resistant to crude oil and drilling fluids.
Industrial Machinery: Seals for compressors, gearboxes, and injection molding machines, suitable for high-temperature and heavy-duty operating conditions.
Aerospace: Sealing components for aircraft hydraulic systems and fuel lines, meeting strict performance and safety standards
 |
