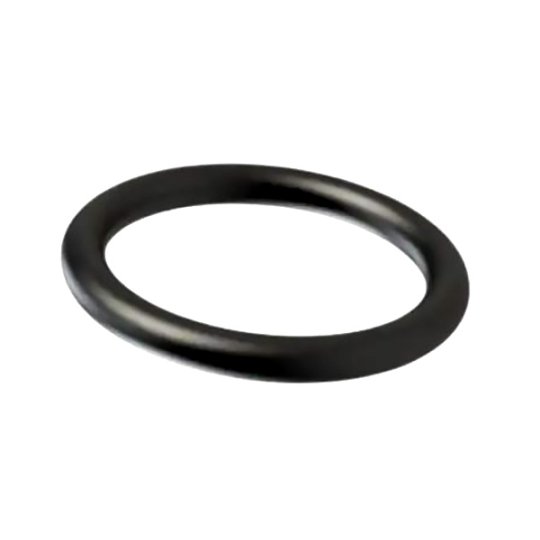

Our EPDM (Ethylene Propylene Diene Monomer) O-Ring is a high-performance static/dynamic sealing component engineered for reliable performance in weather-exposed, high-temperature, and fluid-handling environments. Crafted from premium EPDM elastomer, it delivers exceptional resistance to weathering, heat, and water-based fluids, making it the ideal sealing solution for automotive, HVAC, plumbing, and industrial applications
Basic Information
Item | Specification |
Material | EPDM (Ethylene Propylene Diene Monomer) |
Shape | O-Ring (Circular Cross-Section) |
Temperature Range | -55°C ~ 150°C (Short-Term Peak: 175°C) |
Hardness (Shore A) | 50±5 ~ 80±5 (Custom hardness available) |
Color | Black (Standard), Brown, Green, Gray (Custom colors available) |
Size Range | Metric & Imperial: ID 1mm ~ 500mm, Cross-Section (CS) 1.0mm ~ 10mm |
Compression Set | ≤20% (22h / 150°C, Standard Grade) |
Standards | ISO 3601, AS568, JIS B 2401, ASTM D2000 |
Compliance | RoHS, REACH, FDA (Food-Grade Option Available for Potable Water/Food Contact) |
Core Functions | Static/Dynamic Sealing, Weather Resistance, Water/Steam Resistance, Electrical Insulation |
Performance
· Wide Temperature Resistance: Operates reliably from -55°C to 150°C (short-term peak up to 175°C), maintaining elasticity in extreme cold and heat.
· Superior Weather & Ozone Resistance: Excellent resistance to UV radiation, ozone, and atmospheric aging, preventing cracking and brittleness in long-term outdoor use.
· Fluid Compatibility: Highly resistant to water, steam, dilute acids, alkalis, alcohols, and polar solvents, making it ideal for water-based and chemical systems (not recommended for petroleum-based oils).
· Low Compression Set: Minimal permanent deformation under sustained compression (≤20% at 150°C/22h), ensuring consistent sealing pressure over extended service life.
· Electrical Insulation: Excellent dielectric properties, suitable for sealing electrical enclosures and insulating components.
· High Flexibility: Maintains elastic recovery at low temperatures, ensuring a tight seal even in cold climates.
Application
Automotive & Transportation: Seals for cooling systems (radiators, hoses), door/window weatherstripping, and windshield wiper assemblies.
HVAC & Refrigeration: Gaskets for air conditioning units, heat exchangers, and refrigeration pipelines, resisting water vapor and temperature fluctuations.
Plumbing & Sanitary Systems: Seals for valves, pumps, faucets, and water supply pipelines, providing leak-proof performance in potable water systems.
Electrical & Electronic Enclosures: Protects junction boxes, control panels, and outdoor electrical equipment from moisture, dust, and weather.
Renewable Energy: Seals for solar panel mounting systems, wind turbine components, and battery enclosures, withstanding outdoor environmental stress.
Industrial Machinery: Used in water treatment equipment, food processing machinery (non-fatty applications), and agricultural irrigation systems
