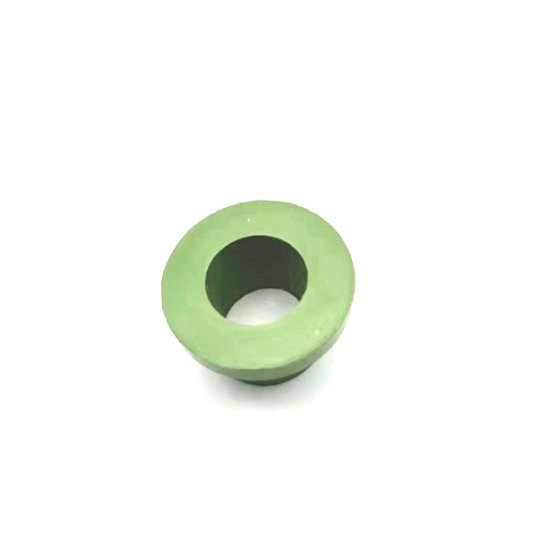

Our T-Shape Compression Mould Green FKM (Fluoroelastomer) Gaskets are precision-engineered sealing components designed for reliable static and dynamic sealing in harsh environments. Manufactured via compression moulding, these T-profile gaskets deliver exceptional resistance to high temperatures, chemicals, and fluids, making them ideal for specialized industrial, automotive, and aerospace applications.
Basic Information
Item | Specification |
Material | Green FKM (Fluoroelastomer / Fluorocarbon Rubber) |
Shape | T-Shape Compression Moulded Gasket |
Temperature Range | -20°C ~ 200°C (Short-Term Peak: 230°C) |
Hardness (Shore A) | 70±5 ~ 90±5 (Custom hardness available) |
Color | Green (Standard), Black, Brown (Custom colors available) |
Size Range | Custom T-profile dimensions: Stem diameter 3mm ~ 20mm, Flange diameter 6mm ~ 40mm, Thickness 1mm ~ 10mm |
Compression Set | ≤20% (70h / 200°C, Standard Grade) |
Standards | ISO3302-1 M2 |
Compliance | RoHS, REACH |
Core Functions | Static/Dynamic Sealing, High-Temperature Resistance, Chemical Inertness, T-Profile Retention, Flame Retardancy |
Performance
Extreme Temperature Resistance: Operates reliably from -20°C to 200°C (short-term peak up to 230°C), maintaining elasticity and sealing integrity in high-heat environments.
Superior Chemical Compatibility: Inert to most oils, fuels, solvents, acids, and corrosive chemicals, preventing degradation and ensuring leak-proof performance.
Low Compression Set: Minimal permanent deformation under sustained compression (≤20% at 200°C/70h), guaranteeing long-term sealing pressure.
T-Profile Design: Unique T-shape provides enhanced retention, alignment, and sealing performance in grooved or recessed applications, preventing extrusion under pressure.
Excellent Weather & Ozone Resistance: Highly resistant to UV radiation, ozone, and oxidation, preventing cracking and brittleness in outdoor or harsh industrial settings.
Flame Retardancy: Inherently flame-resistant, meeting stringent safety requirements for high-risk operating environments.
Application
Automotive & Transportation: Seals for engine components, fuel systems, and exhaust manifolds, withstanding exposure to fuels, lubricants, and extreme heat.
Oil & Gas Industry: T-profile seals for wellhead equipment, pipeline flanges, and refinery valves, resisting crude oil, drilling fluids, and corrosive chemicals.
Chemical Processing: Gaskets for reactors, pumps, and piping systems, providing reliable sealing against corrosive acids, solvents, and chemical reagents.
Aerospace & Defense: Sealing components for hydraulic systems, fuel lines, and avionics, meeting strict performance and safety standards.
Industrial Machinery: T-shaped seals for compressors, heat exchangers, and hydraulic cylinders, ensuring leak-proof performance in heavy-duty operations.
Semiconductor & Pharmaceutical: High-purity seals for cleanroom equipment, meeting strict contamination control standards.
