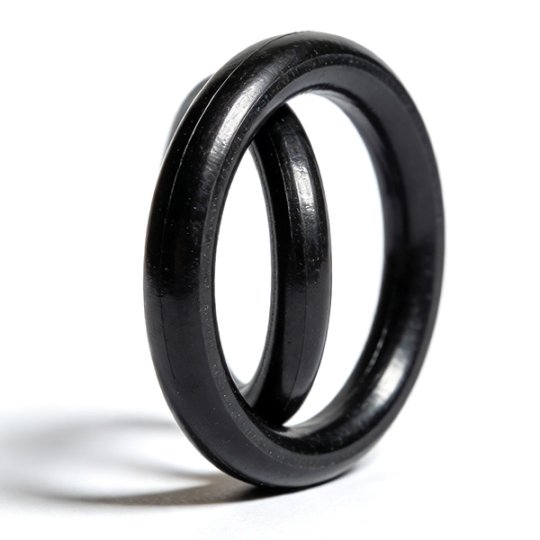

Our FKM (Viton) O-Ring is a high-performance elastomer sealing component designed for extreme operating conditions including high temperature, high pressure, and aggressive chemical environments. Engineered for static and dynamic sealing applications, it delivers exceptional reliability in automotive, aerospace, hydraulic, oil & gas, and industrial machinery systems.
Basic Information
Item | Specification |
Material | FKM (Fluoroelastomer / Viton-grade) |
Section Type | O-Ring (round cross-section) |
Temperature Range | -20°C ~ 220°C |
Hardness (Shore A) | 50~80±5 (custom available) |
Color | Black (standard), brown, green (custom) |
Size Range | Metric & Imperial: ID 1mm ~ 500mm, CS 1.0mm ~ 10mm |
Compression Set | ≤20% (22h / 200°C) |
Standards | ISO3302-1 M2 |
Compliance | RoHS, REACH, FDA (food-grade option available) |
Application | Static & dynamic sealing, high temp, high pressure, chemical resistance |
Performance
Extreme Temperature Resistance: Operates stably from -20°C to 220°C (short-term up to 250°C).
Excellent Chemical Compatibility: Resists fuels, oils, lubricants, hydraulic fluids, acids, and many solvents.
Low Compression Set: Maintains sealing integrity under long-term compression with minimal permanent deformation.
High Pressure Resistance: Performs reliably in both static and dynamic high-pressure hydraulic/pneumatic systems.
Aging, Ozone & UV Resistance: Excellent weatherability prevents cracking and degradation over extended service life.
Low Permeability: Minimizes gas and fluid leakage in critical sealing applications.
Application
· Automotive & Transportation: Engine seals, fuel system O-rings, transmission seals, turbocharger systems.
· Hydraulic & Pneumatic Systems: Valves, pumps, cylinders, connectors, and fluid power equipment.
· Oil & Gas Industry: Downhole tools, pipeline seals, drilling equipment, and chemical processing systems.
· Aerospace & Aviation: Aircraft hydraulic systems, engine components, avionics sealing.
· Industrial Machinery: Pumps, compressors, heat exchangers, and heavy-duty manufacturing equipment.
· Chemical Processing: Seals for reactors, pipelines, and storage systems handling aggressive media.
