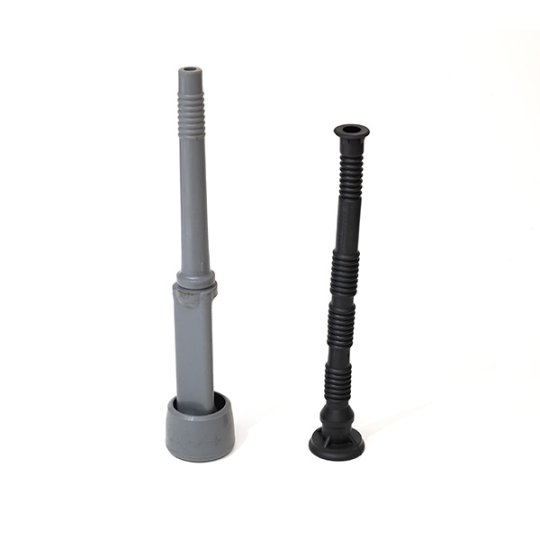

Product Name： FDA Silicon Teat Liner
Material： Silicon
Color： Black / Grey (customizable)
Structure： One-piece molded design with integrated flange, body, and mouthpiece
Certification： FDA
Technical Specifications
Parameter | Standard Value | Tolerance | Test Method |
Length | [313/320 mm] | ±1 mm | ISO 2780 |
Inner Diameter (Mouthpiece) | [22.5 mm] | ±0.2 mm | ISO 2780 |
Outer Diameter (Body) | [57.9 mm] | ±0.2 mm | ISO 2780 |
Flange Diameter | [10 mm] | ±0.3 mm | ISO 2780 |
Hardness (Shore A) | 60 ± 5 Shore A | - | ISO 868 |
Tensile Strength | ≥ 7.0 MPa | - | ISO 37 |
Elongation at Break | ≥ 400% | - | ISO 37 |
Operating Temperature | -60°C to +230°C | - | ISO 188 |
Compression Set | ≤ 10% (22h, 70°C) | - | ISO 815 |
Sterilization Compatibility | Autoclave (121°C), E-beam, gamma radiation | - | Internal Test |
Service Life | ≥ 2,500 milking cycles | - | Field Test |
Performance Characteristics
Food Safety: FDA-compliant material ensures no chemical leaching, making milk safe for human consumption.
Hygiene: Non-porous surface prevents bacterial colonization and simplifies cleaning and sanitization.
Animal Welfare: Soft, flexible silicone minimizes teat irritation and stress, promoting better milk let-down and animal health.
Durability: Exceptional resistance to wear, chemicals, and deformation reduces operational costs and downtime.
Consistency: Uniform material properties ensure reliable vacuum sealing and milking performance across all cycles.
Applications

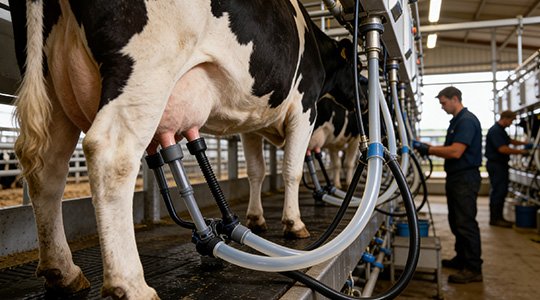

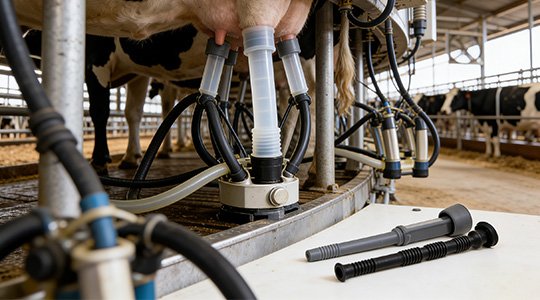

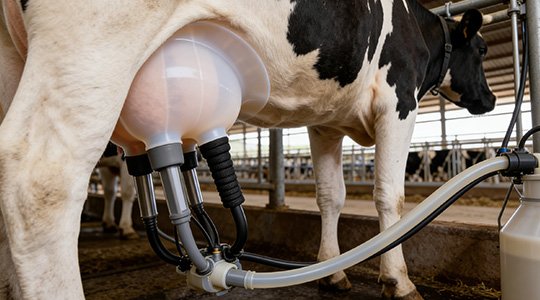

Dairy Farming: Core component in milking clusters for cows, goats, and sheep.
Milking Systems: Compatible with conventional, rotary, and robotic milking parlors.
Specialized Use: Ideal for organic dairies, premium milk production, and operations with strict hygiene protocols.
 |  |  |
Packaging & Storage
Packaging: 4 pcs per sterile PE bag, 25 bags per carton
Storage: Store in a cool, dry, dark environment (15°C–25°C, RH ≤ 60%), away from direct sunlight, ozone, and chemical solvents.
Shelf Life: 36 months from production date under recommended storage conditions.
Compliance & Certifications
Food Safety: FDA Certificate
Quality Management: ISO 9001:2015,
