Our Rubber Compression Mould is a precision-engineered tool designed for high-volume production of custom rubber components (including EPDM, NBR, silicone, and NR parts). Built from high-grade tool steel, it delivers consistent dimensional accuracy, durable performance, and reliable results under high-temperature and high-pressure compression molding processes.
Basic Information
Item | Specification |
Material | S136H / P20 / 45# Tool Steel (Customizable) |
Cavity Quantity | 2–32 cavities (customizable, as shown: 8-cavity) |
Mould Hardness | HRC 48–52 (after heat treatment) |
Operating Pressure | 20–30 MPa |
Operating Temperature | 180–220°C (depending on rubber material) |
Surface Finish | Ra ≤ 0.8μm (polished) / Ra ≤ 1.6μm (standard) |
Surface Treatment | Nitriding / Chrome Plating / Polishing (optional) |
Mould Life | ≥ 500,000 cycles (with proper maintenance) |
Mould Base Size | Customizable (e.g., 500×400×250mm) |
Compatible Materials | EPDM, NBR, Silicone, NR, and other elastomers |
Application | Rubber Compression Molding for Seals, Gaskets, and Custom Parts |
Performance

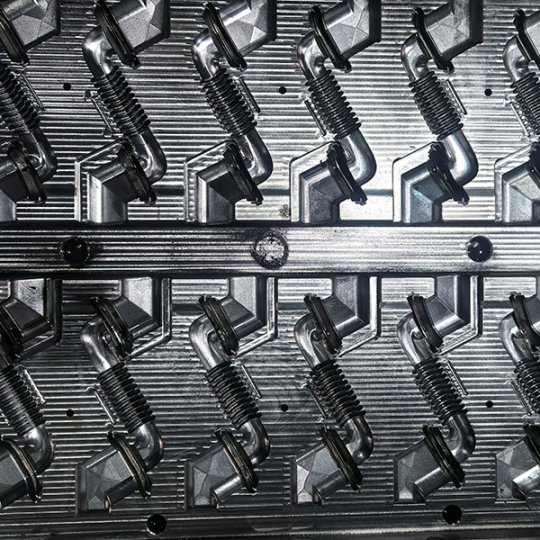

· Multi-Cavity Design: The mould (as shown) features a multi-cavity layout (8 cavities in this example) to maximize production efficiency and reduce per-unit costs.
· High Pressure & Temperature Resistance: Designed to operate at pressures up to 20–30 MPa and temperatures up to 180–220°C, compatible with most rubber curing processes.
· Uniform Heat Distribution: Optimized runner and venting systems ensure even heat transfer, preventing under-curing or over-curing of rubber parts.
· Precision Dimensional Control: Tight machining tolerances (±0.01mm) guarantee consistent part dimensions across all cavities and production runs.
· Easy Demoulding: Precision parting lines and ejection mechanisms (threaded cores visible in the image) allow for smooth removal of finished rubber parts without deformation.
· Long Service Life: Wear-resistant tool steel and surface treatments ensure a mould life of ≥ 500,000 cycles with proper maintenance.
Application
· Automotive Industry: Production of seals, gaskets, O-rings, and vibration dampers for engine, chassis, and interior systems.
· Industrial Machinery: Manufacturing of hydraulic/pneumatic seals, buffer pads, and custom rubber components for heavy machinery.
· Electrical & Electronics: Fabrication of insulating gaskets, cable grommets, and heat-resistant rubber parts for electrical enclosures.
· HVAC & Plumbing: Production of weatherstripping, pipe seals, and water-resistant gaskets for building systems.
· Consumer Goods: Manufacturing of kitchenware seals, appliance components, and sports equipment rubber parts.
· Medical & Healthcare: Production of silicone-based medical seals, gaskets, and non-toxic rubber components.
